Affinity Designer 2.6.5 for macOS

If you have ever poked around in Pages or Keynote and wished the drawing tools went further, Affinity Designer is the natural next step. It handles real vector work without the baggage of a bloated old-school suite. The affinity designer 2 download macOS package runs fine on Macs all the way back to macOS 10.15, Intel or Apple Silicon.

Start with the Pen tool and a simple shape. Pull a few curves, then switch on brush stabilization to smooth out your hand. The Pencil improvements in 2.6 make freehand sketching far less wobbly than you would expect.

Next, type a line of artistic text, draw a wavy path, and snap the text onto it. That one trick sells a lot of people on vector work. When you feel comfortable, open a raster workspace and paint for a bit. Being able to move between vector and pixel work in the same file is the part I use most.

Do not worry about learning every panel. Play with the marquee selection toggle using Command or Ctrl, then open a PSD or AI file from elsewhere to see how cleanly it imports. After an afternoon of that, you will know whether this is your long-term drawing home.

When nodes ignore the snapping settings

Most hiccups are not bugs — they are just the app behaving in a way that is not obvious at first. Here are a few I see people trip on.

• Nodes not snapping where you expect. Check the snapping manager — it is easy to knock a setting off while working fast. Make sure "Snap to geometry" is on, and lower the tolerance if the cursor is grabbing things half a screen away.
• Brush strokes lagging. Switch the view mode from Vector to Pixel (View → View Mode). On older Macs, Metal sometimes stumbles with huge canvases. If it persists, pop open Preferences → Performance and drop the view quality a notch.
• Text on a path flips upside down. Drag the start handle along the line, or use the reverse path button in the context toolbar. That is all it takes — no need to redraw anything.
• Imported PSD or AI file looks wrong. Affinity does not read every proprietary effect the Adobe formats stash away. Smart objects and some layer styles will flatten or vanish. Keep the original handy, and rebuild those bits with native adjustments.
• Export colors washed out. You probably built the file in RGB and exported in CMYK without soft-proofing. Open the soft proof panel, pick your target profile, and tweak before you export. It saves a lot of ruined print runs.

The one-layer trap that turns editing into a mess

Nothing wrong with fumbling around — everybody does. But a handful of habits slow people down more than they realize.

• Drawing everything on one layer. A logo with sixty curves all mashed onto the same layer becomes a nightmare to edit. Group related pieces, name your layers, and use artboards to keep variations tidy.

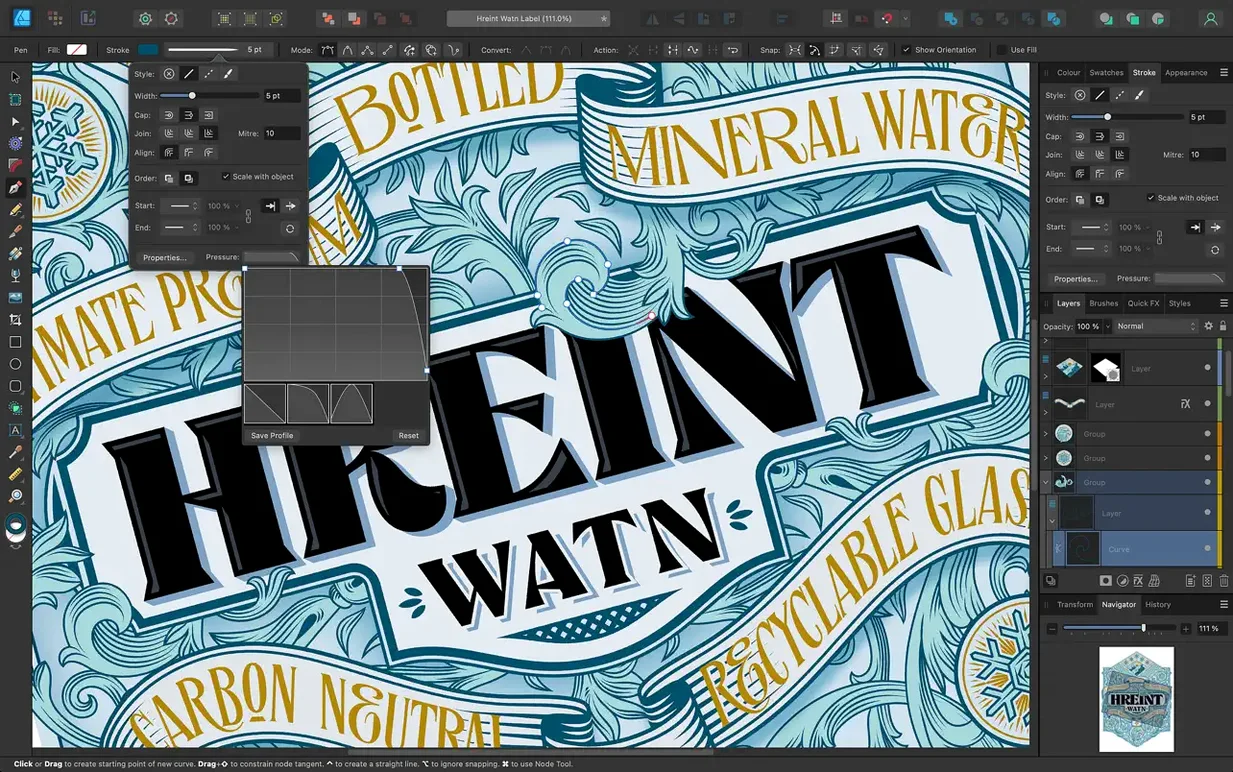

• Ignoring the Stroke Width Tool. New users grab the Pen tool and drag out the same fat line everywhere, then manually redraw sections to create tapered strokes. The Stroke Width Tool does that with a couple of drags. Version 2.6 even lets you reset a profile if you mess it up.
• Using raster brushes for final print work. Pixel brushes are handy for texture, but if the whole design relies on them, it will not scale cleanly. Check your export resolution early, not right before you send the file to a printer.
• Forgetting the Command toggle for marquee select. By default, marquee select grabs anything it touches. Hold Command while you drag, and only fully enclosed objects get selected. It is a tiny thing that saves a ton of re-clicking.

Building a coffee-cart badge from an empty canvas

Picture a quiet Tuesday evening. You want a badge logo for a friend's coffee cart.

You open Affinity Designer and hit File → New. The dialog asks for a canvas size — you punch in 1200 by 1200 pixels, RGB, and tick "Create artboard." An artboard gives you a clean cropping boundary, so the final export is not all over the place.

First, the coffee cup shape. You grab the Ellipse tool and drag out a circle, then switch to the Node tool and tug the bottom point downward into a gentle curve. A few handles pulled here and there, and it reads like a cup. You duplicate it, scale the copy down, and use Subtract in the geometry toolbar to hollow out the rim. Three minutes, no fuss.

Now the steam. With the Pencil tool — smoothed by the stabilization slider at about 15% — you sketch three wispy lines above the cup. The lines come out relaxed and organic, not like you drew them with a nervous hand. You select all three, open the Stroke Width Tool, and drag the ends down to a hairline so the steam fades at the tips. Reset Profile is right there in the context bar if you want to scrap the width changes and try again.

Text next. You type "BROADSIDE" in all caps, set the font to a chunky sans-serif, and convert it to curves. That lets you tweak the letter shapes directly — you pull a node on the B to open the counter a little wider, just because it looks friendlier. For the cart's tagline, you draw a shallow arc across the cup, grab the Artistic Text tool, click the path, and type. The words ride the curve with no fiddling.

Last, color. You fill the cup with a warm orange gradient, keyframed to taste, and switch the document to CMYK temporarily to see if the orange survives conversion. Soft proof shows it gets a little muddy, so you nudge the yellow channel up. Good enough. You export a PNG for screens and a print-ready PDF with bleed, then close the lid of the laptop. The whole thing took maybe forty minutes, and nothing needed redoing from scratch.

Bottom line: most snags are fixable in a few clicks once you know where to look, and the working rhythm — draw, tweak, export — stays fast because the app stays out of your way.

Version 2.6.5 is mostly housekeeping — bug fixes and stability work. The 2.6 update itself brought improvements to the Pencil tool, Stroke Width Tool profiling with a Reset Profile option, and a Command or Ctrl toggle for marquee select intersection behaviour.

• macOS 10.15 or later
• Intel or Apple Silicon Mac
• Interface languages: English, German, Spanish, Italian, Simplified Chinese, Portuguese, French, Japanese
