GraphPad Prism 11.1.0 for macOS

Nobody gets into science to spend their afternoon wrestling with a spreadsheet and a separate graphing program, trying to reproduce the plot from last month's experiment. You need one place where the analysis, the curve fitting, and the final figure live together, and you need to trust the numbers it spits out. That's the problem Prism solves.

Run t tests, ANOVA, and nonlinear regression in one place

• Running t tests, ANOVA, and nonlinear regression without switching apps
• Organizing and displaying repeated experiments so you can see the whole story
• Turning a multiple variables table directly into bars, box-and-whisker plots, or violin plots
• Working on an Apple Silicon or Intel Mac without compatibility headaches

English-only interface, macOS 11 required

• The interface is English only
• You need macOS 11 or newer
• This is specialized lab software, not a general-purpose spreadsheet

Drag in CSV or Excel data from your plate reader

Prism doesn't demand you abandon everything else you use. It reads CSV and Excel files without fuss, so the data your plate reader or flow cytometer coughs up lands in a Prism table with a quick drag or a copy-paste. Once your figure is ready, you can export as TIFF, PDF, or EPS at publication resolution, then drop it straight into Illustrator or Affinity Designer for final tweaks. Or paste a graph into PowerPoint and it stays editable as a Prism object on a Mac that has the app installed.

It also plays nicely with macOS features people forget about. You can tag your project files in the Finder, use Spotlight to find an old dose-response curve by the drug name in the file title, and rely on Time Machine to catch every version of your analysis. If you keep your projects in iCloud Drive, the file syncs between your lab Mac and the one at your home desk without a second thought.

One less obvious pairing: Prism and Shortcuts. You won't automate a full analysis, but you can build a shortcut that opens yesterday's project file or exports a graph folder to a shared lab drive. Small things that cut five minutes of clicking into one tap.

Graph stuck after editing the table

A few rough edges show up once you've used Prism long enough to have real deadlines breathing down your neck.

Graph won't reflect your data changes. You edited the table, but the plot sits there unchanged. Nine times out of ten, you're looking at a graph linked to a different data sheet than you think. Check which table the graph actually points to in the dialog. The other time, you've accidentally frozen the graph. Right-click it and unfreeze.

Nonlinear regression spits out "ambiguous" or nonsensical parameters. Usually the starting values are too far from reality. Prism's automatic initial values are smart but not psychic. Go into the parameters dialog and give it a sensible guess based on what you know about the biology. The algorithm just needs a nudge.

Exporting a graph and the resolution looks bad in your manuscript. You exported at screen resolution. When you go to File > Export, switch the size setting to "Make width equal to" and set it to the column width your journal wants, at 300 or 600 dpi. A graph destined for a single column at 600 dpi looks crisp every time.

The app feels sluggish on a large project. Even on Apple Silicon, a project with forty data tables and a hundred graphs can get heavy. Close any floating analysis results windows you aren't using, and save a fresh copy of the file. Old project files sometimes carry invisible cruft from earlier Prism versions. Saving under a new name can slim things down.

One-way ANOVA on the wrong data—no warning

Prism hides some of the statistics complexity, but it doesn't hide all of it. New users often walk into the same traps.

Picking the wrong analysis because the dialog let them. Prism won't stop you from running a one-way ANOVA on data that needs a repeated measures design. The software trusts you to know your experimental setup. If the same animal or the same plate gave you measurements at three time points, that's repeated measures. Choosing the standard ANOVA inflates your P value and nobody catches it until a reviewer squints at the methods section.

Ignoring the normality tests, then trusting the parametric results. A small sample size and a quick click through the defaults, and you've run a t test on data that would fail a normality check. Prism offers normality tests right in the analysis dialog. Use them, and if the data flunk, switch to a nonparametric test. It's two extra clicks that save a revision letter.

Letting the automatic graph style dictate the story. The default bar chart colors and error bar style are just a starting point. A beginner often ships a figure with gray bars, no individual data points shown, and SEM error bars because that's what Prism drew first. Show the individual replicates. Switch to SD if that's what your field expects. Change the color so it doesn't look like every other figure in the journal. The graph should make your point, not the developer's defaults.

Saving only the .pzfx file and assuming that's enough. The project file is your source of truth, but a collaborator without Prism can't open it. Export a PDF or PNG of every figure into the same folder before you send anything to a PI or a journal. Future you, trying to reopen a project from three years ago, will also appreciate having a flat image backup when the file format has moved on.

Version 11.1.0 tidies up a few corners that used to slow you down. The new graph types for multiple variables tables are the headline, but I appreciate the smaller fixes too.

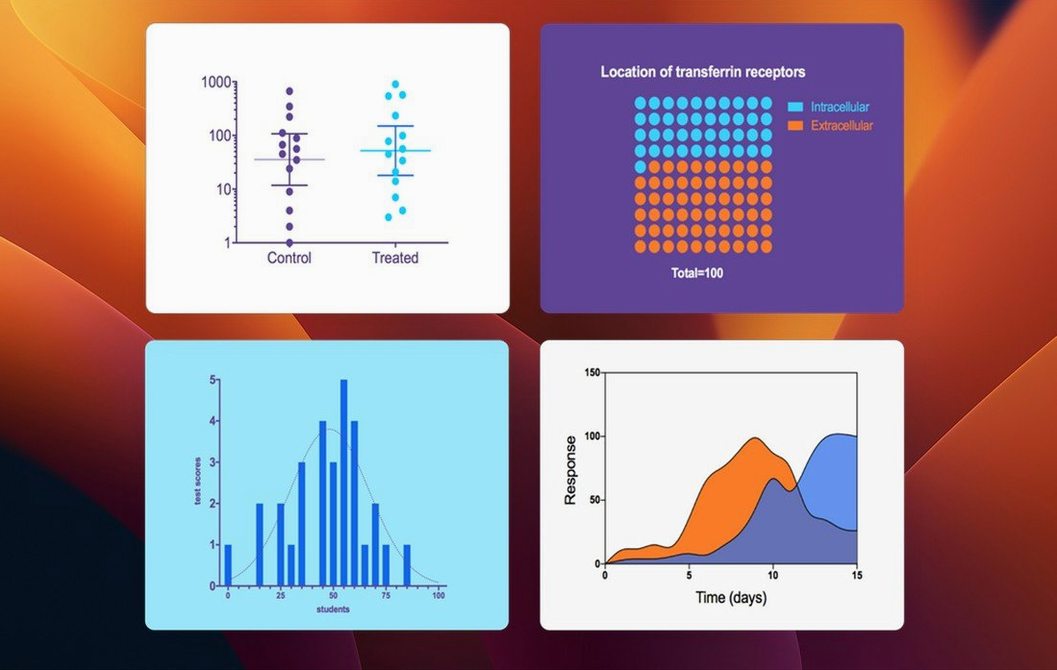

• New graph types for multiple variables tables — bars, box-and-whisker, and violin plots
• Categorical level ordering for multiple variables data tables
• Streamlined variable selection inside the analysis dialogs — fewer clicks to set up t tests, ANOVA, nonlinear regression, and simple survival analysis

• macOS 11 or newer
• Apple Silicon or Intel 64-bit Mac
